SINGLE STATION GLOVE BOX
SINGLE STATION GLOVE GOX
Type O sealing ring vacuum sealing flange Windows Glove Box

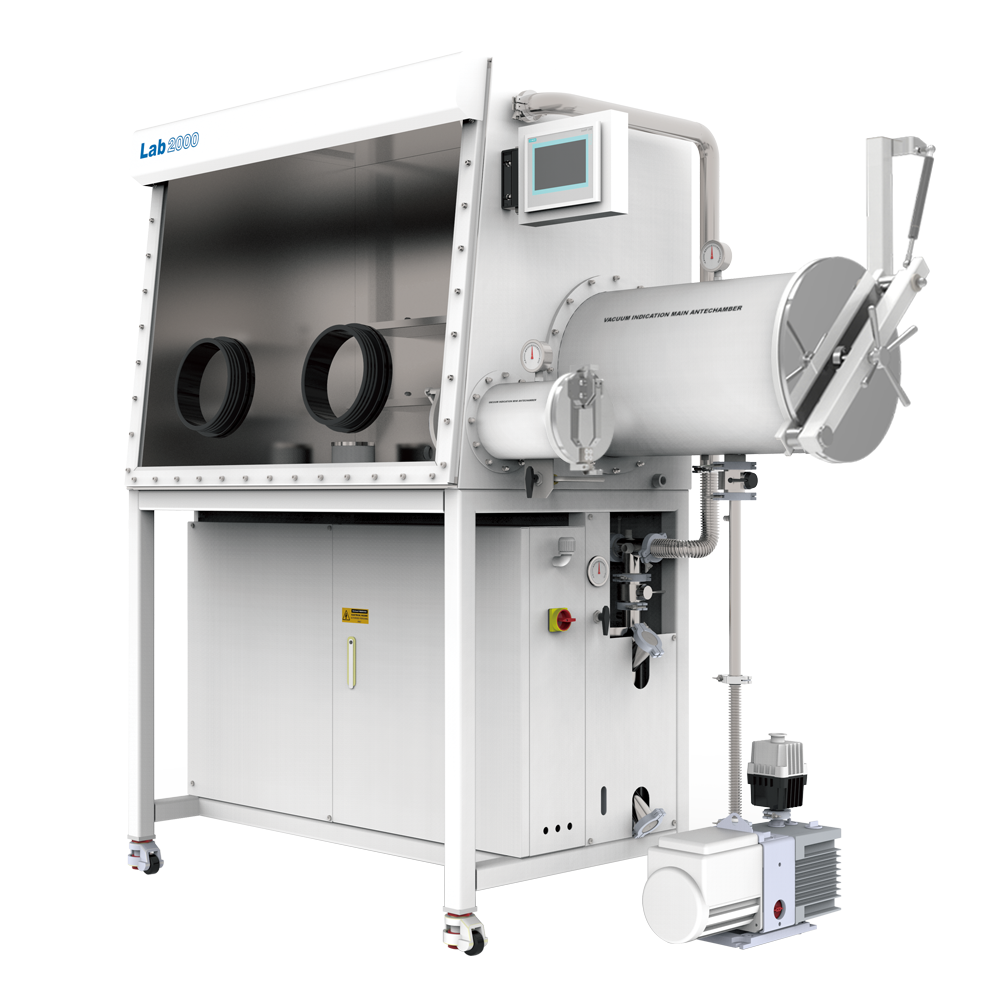

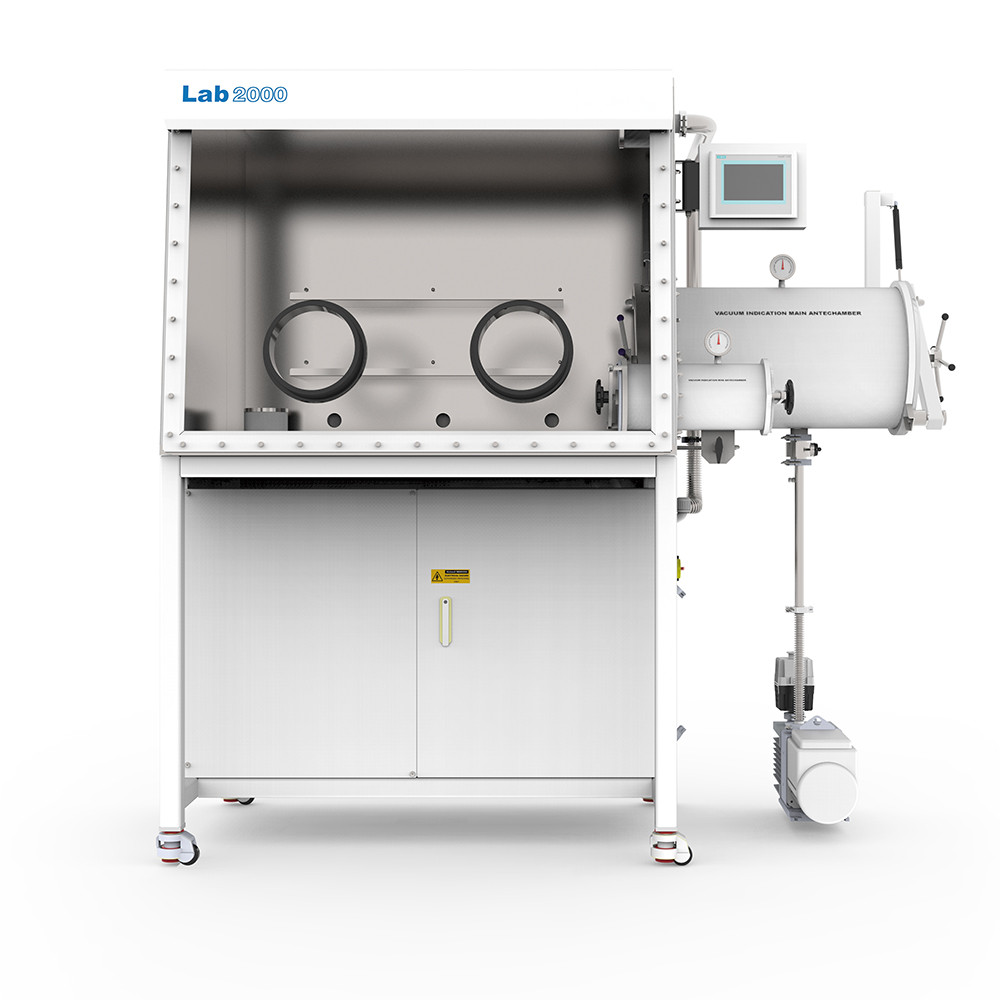

Lab2000 single-station glove box is a compact controlled-atmosphere containment unit designed for laboratory R&D and small-batch production, providing stable oxygen-free and moisture-free working environment for air-sensitive materials with integrated purification, cleaning and customizable auxiliary options.
The flange Windows with the box body adopts continuous welding method, nondestructive flaw detection of weld, welding without any leakage.
Double seal in vacuum effectively block the air between the H2O, O2, N2 molecular diffusion of box and toxic molecules diffuse out of the glove box, sealed high reliability, low leakage rate, housing leakage rate < 0.0005 vol % / h.
Click the image to enlarge or use the controls to view more
Additional Information
CORE SPECIFICATIONS
Main Chamber
Material:
Stainless Steel Type 304, Thickness 3mm (1/8")
InsideDimension:
1200mm(L) x 750mm(W) x 900mm(H) 48.0"/29.5"/35.4"
Sight Windows:
Inclined, Safety Glass, Thickness 8mm (1/3")(Polycarbonate available)
Dimensions：1123mm(L) x 839mm(H)
Gloves Ports:
Aluminum/Polyoxymethylene(optional), double O-ring seal, 220mm (8.7") Diameter
Gloves:
Butyl, 8" cuff dia., 0.015"thick, 32" long (many other materials and sizes available specific to your needs)
Dust Filter:
HEPA 0.3µm, one on gas inlet, one on gas outlet
Box Light:
LED, front and top mounted
Leakage Rate: The final acceptance test shall be conducted in accordance with the standard of leakage rate < 0.001 vol%/h
Gas Purification Unit
Function:
Airtight Seal, Removal of H2O and O2, Single purification column system, automatic regeneration
Attainable Purity:
Less than 1 ppm moisture and oxygen
Working Gas:
Nitrogen, Argon or Helium
Vacuum Pump:
Rotary vane pump with oil mist and gas ballast control unit 12 m³/h (7 cfm), vacuum degree< 2 x 10-3 mbar (Dry pump is available)
Encapsulated Blower:
Oil-free high-speed fan, Air volume：0 - 100 m³/h
Main Valves:
Electromagnetic high vacuum valve
Leakage Rate: The final acceptance test shall be conducted in accordance with the standard of leakage rate < 0.001 vol%/h
Cleaning System
Description:
After setting the corresponding time and pressure, the system can automatically perform gas displacement on the box
