Glove Boxes
DUAL STATION GLOVE GOX
DUAL STATION GLOVE GOX

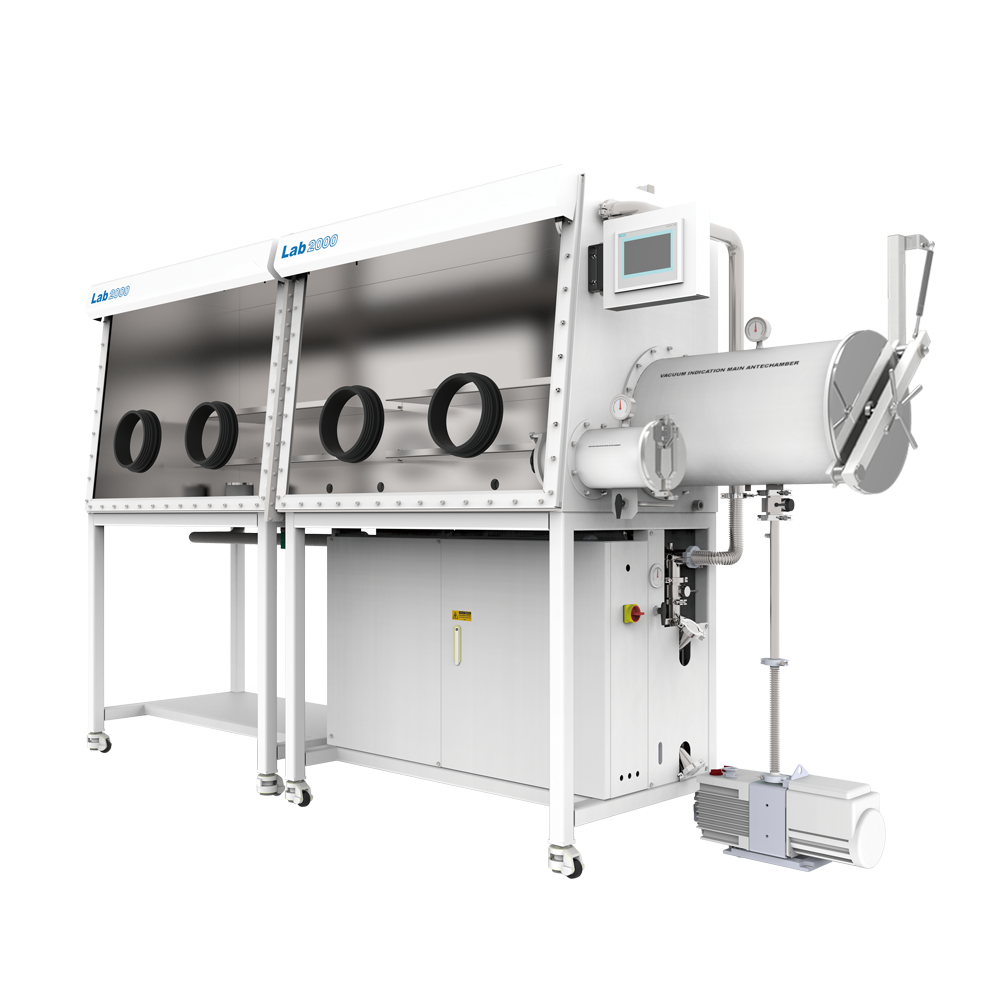

Dual‑station glove box for two‑person collaborative operation
Lab2000 dual‑station glove box is a super-pure environment free of water, oxygen and dust, applied in scientific research, lithium-ion battery and material research.
The flange Windows with the box body adopts continuous welding method, nondestructive flaw detection of weld, welding without any leakage.
Double seal in vacuum effectively block the air between the H2O, O2, N2 molecular diffusion of box and toxic molecules diffuse out of the glove box, sealed high reliability, low leakage rate, housing leakage rate < 0.0005 vol % / h.
Click the image to enlarge or use the controls to view more
Additional Information
CORE SPECIFICATIONS
Main Chamber
Material:
Stainless Steel Type 304, Thickness 3mm (1/8")
InsideDimension:
1800mm(L) x 750mm(W) x 900mm(H) 70.9"/29.5"/35.4"
Sight Windows:
Inclined, Safety Glass, Thickness 8mm (1/3")(10mm Polycarbonate available)
Dimensions:
1735mm(L) x 839mm(H)
Gloves Ports:
Aluminum/Polyoxymethylene(optional), double O-ring seal, 220mm (8.7") Diameter
Gloves:
Butyl, 8" cuff dia., 0.015"thick, 32" long (many other materials and sizes available specific to your needs)
Dust Filter:
HEPA 0.3µm, one on gas inlet, one on gas outlet
Box Light:
LED, front and top mounted
Leakage Rate: The final acceptance test shall be conducted in accordance with the standard of leakage rate < 0.001 vol%/h
STANDARD SERIES
CUSTOMIZED SERIES
APPLICATIONS OF GLOVE BOX
