Glove Boxes

ACRYLIC GLOVE BOX B-TYPE

ACRYLIC GLOVE GOX

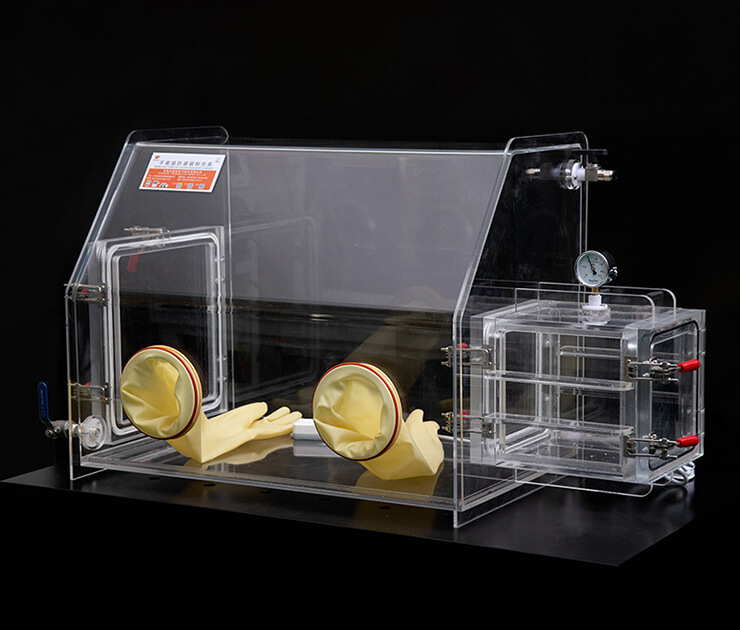

Acrylic Inner‑atmosphere Glove Box with Transition Chamber

Acrylic glove box is the water oxygen value inside the main box is reduced by directly replacing the inert gas. The concentration of the water oxygen value after replacement is determined by the replacement time and the purity of the inert gas.

B-type glove box is equipped with a vacuum transition chamber. During the experiment, if items need to be transferred inside or outside the box, they can be transferred through the transition chamber without disrupting the low water oxygen atmosphere that has been replaced inside the main box.

Made of imported high-quality acrylic material, it features high transparency, clear experimental process without blind spots, and does not turn yellow over time.The box body in and out of port USES fast plug-in, convenience of tracheal connection, also can choose pagoda, with ball valve switch.

Click the image to enlarge or use the controls to view more

Additional Information

CORE SPECIFICATIONS

Series

2B
Size(mm): 800W*550D*600H
Thickness(mm): 6
Side Door(mm):300H*300D, manual door

3B
Size(mm): 800W*550D*600H
Thickness(mm): 6
Side Door(mm):300H*300D, manual door

4B
Size(mm): 900W*500D*500H
Thickness(mm): 6
Side Door(mm):300H*300D, manual door

5B
Size(mm): 900W*600D*700H
Thickness(mm): 10
Side Door(mm):300H*300D, manual door

6B
Size(mm): 1000W*750D*700H
Thickness(mm): 10
Side Door(mm):300H*300D, manual door

8B
Size(mm): 1200W*800D*700H
Thickness(mm): 10
Side Door(mm):300H*300D, manual door

vacuum degree(PA)
±1000

Transition chamber size(mm)
240W*240D*240H

Vacuum degree of the transition chamber(Mpa)
-0.1Mpa

APPLICATIONS OF GLOVE BOX
WHY CHOOSE ACRYLIC GLOVE BOX
