Circle Stainless Steel
CIRCULAR GLOVE PROTS STAINLESS STEEL
STAINLESS STEEL CIRCULAR FLANGE

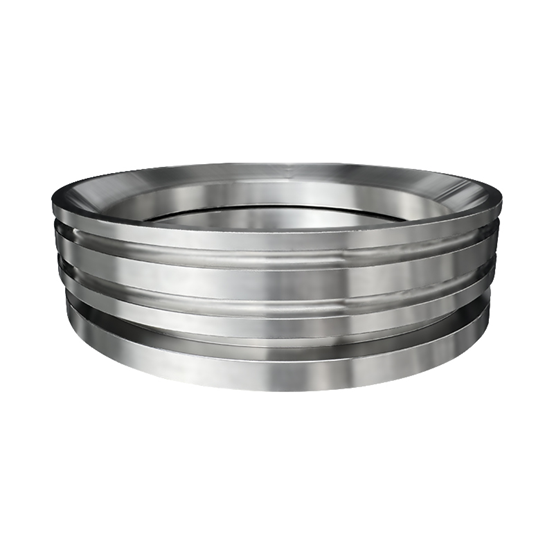

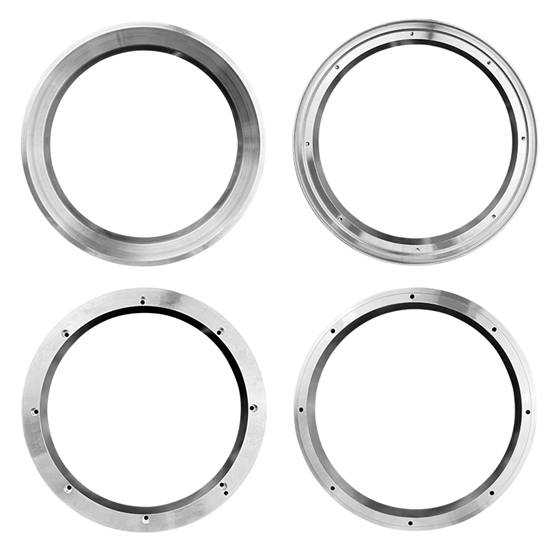

Glove Box Stainless Steel Circular Port
Stainless steel glove port flanges are precision-machined sealing connectors designed for glove port installation, delivering airtight performance, corrosion resistance and long-term structural stability for isolator and glove box containment systems.
Flange Material
304 Stainless Steel(SUS )
Color(s)
Silver
Characteristics
Resistant to ozone, acid and alkali corrosion, and aging
Click the image to enlarge or use the controls to view more
Additional Information
SPECIFICATION
Material:
Stainless steel
174mm Hole Dimension
Applicable Gloves: 7''
Internal dia: 157mm
External dia: 195mm
221mm Hole Dimension
Applicable Gloves: 8''
Internal dia: 204mm
External dia: 242mm
251mm Hole Dimension
Applicable Gloves: 9''
Internal dia: 234mm
External dia: 272mm
280mm Hole Dimension
Applicable Gloves: 10''
Internal dia: 263.5mm
External dia: 300mm
Note: The datas are from manually measured and there may be slight variations. Please refer to the actual size for accuracy.
MATCHING PARAMETERS
APPLICATIONS OF STAINLESS STEEL GLOVE PORT FLANGE
